Description
- Brand Name:Â victoptics
- Type:Â RIFLE
- Origin:Â CN(Origin)
- Model Number:Â OPSL04
- Function:Â Lens
- Magnification:Â 3-9x
- Objective Lens Dia:Â 40mm
- Ocular Lens Dia.:Â 28mm
- Exit Pupil:Â 13.3-4.4mm
- Optics Coating:Â Multi coated
- Field of View:Â 11.5-34.9 feet @ 100 yards
- Eye Relief:Â 45-50mm
- Length:Â 190mm (7.5 inch)
- Weight:Â 330g (11.6oz)
- Tube Dia.:Â 25.4mm 1″

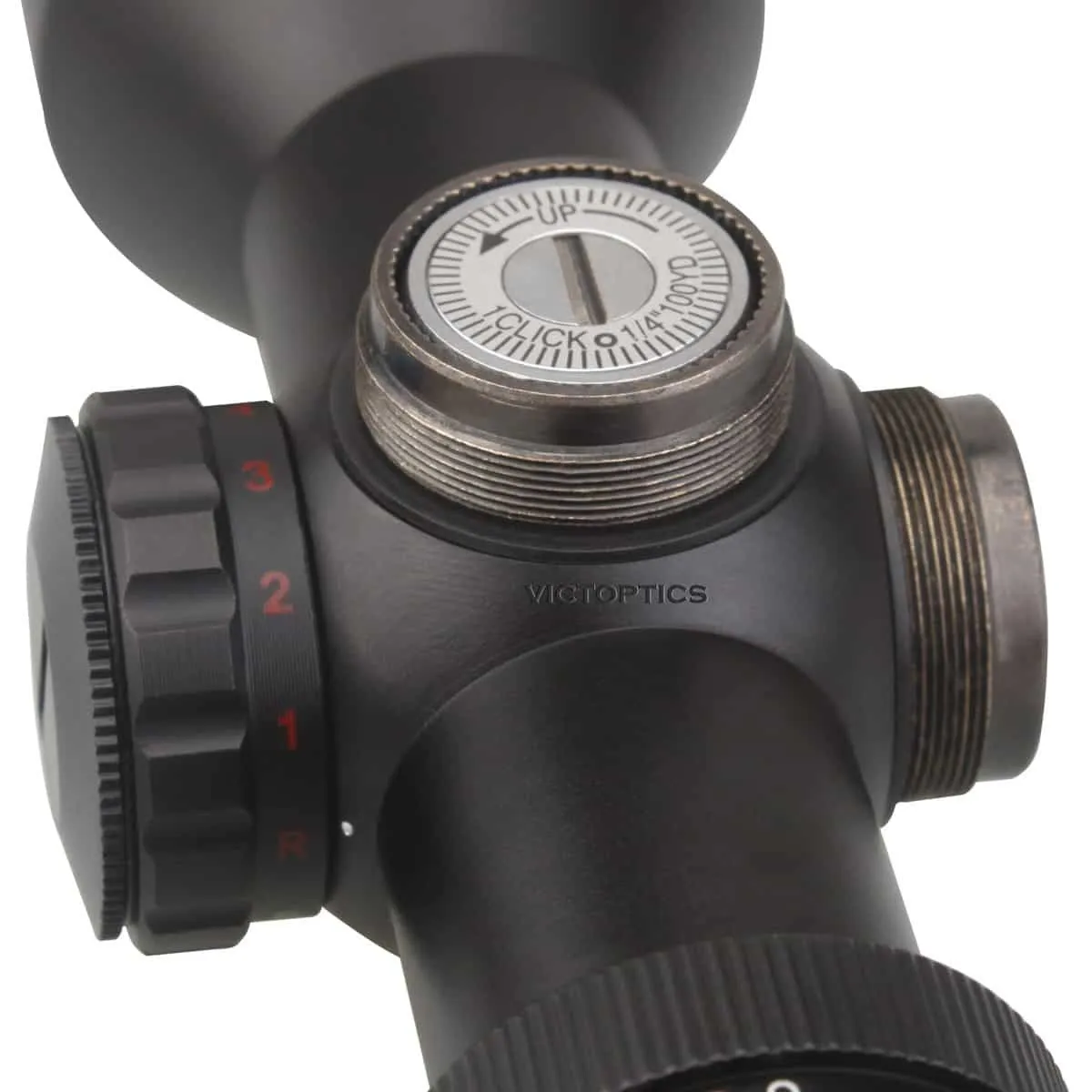

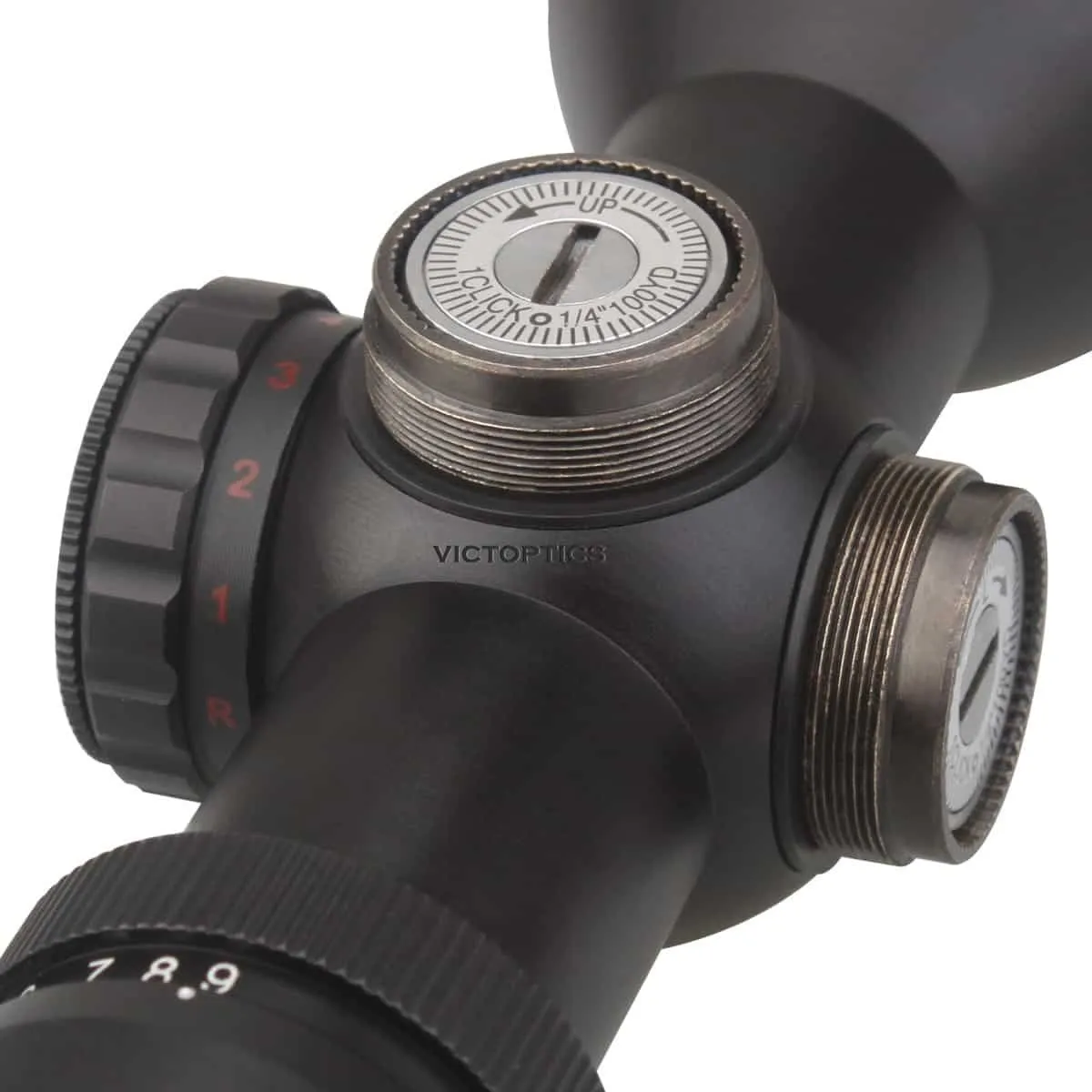

- Click Value:Â 1/4 MOA
- Elevation Range:Â 90MOA
- Windage Range:Â 90MOA
- Parallax Setting:Â 100 yards

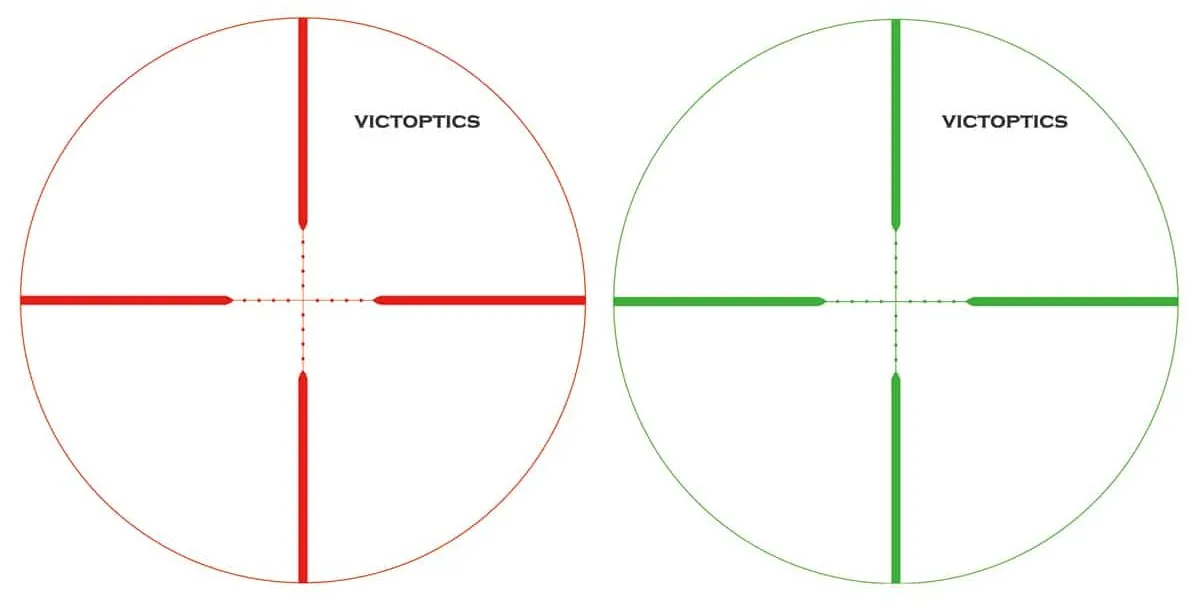

- Reticle:Â Mil-dot (H)
- Material:Â 6063-T6 alluminum alloy
- Illumination:Â 5 red & green
- Battery:Â CR2032

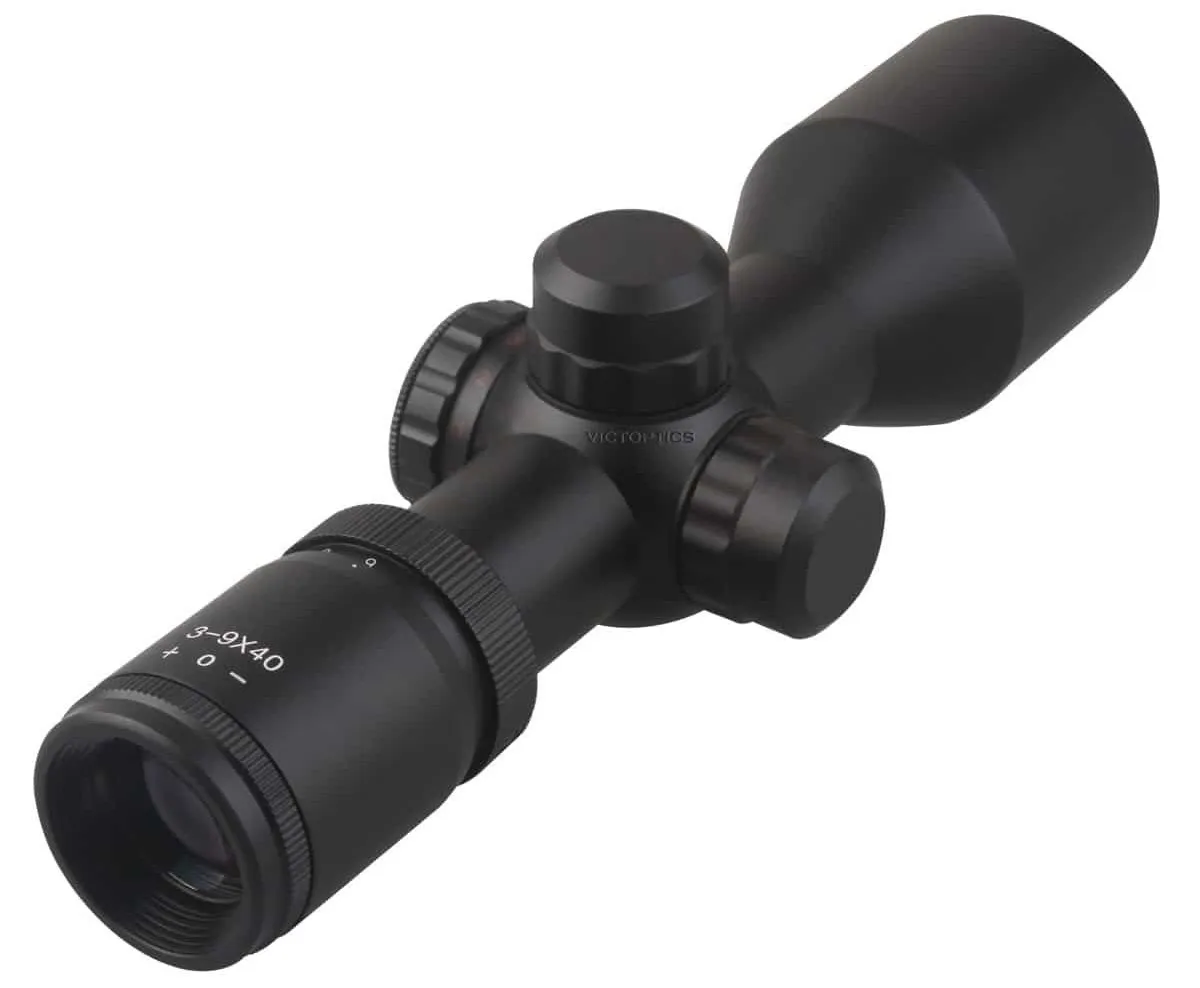

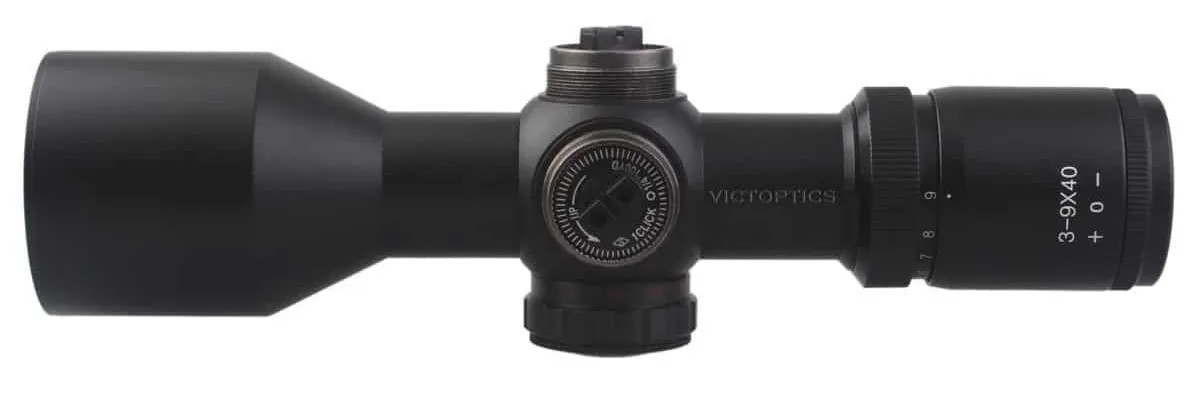

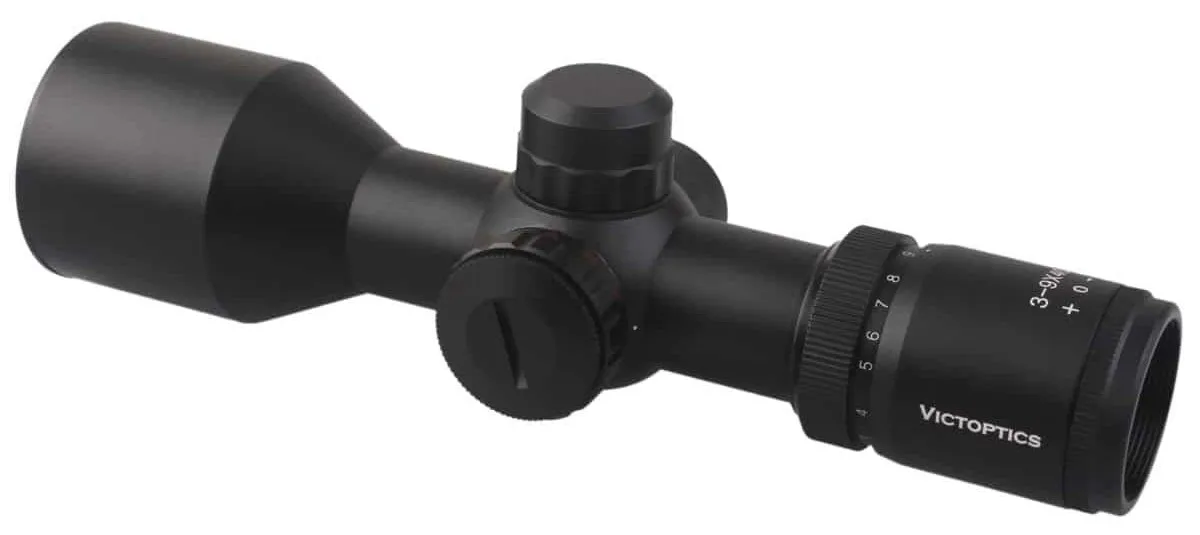

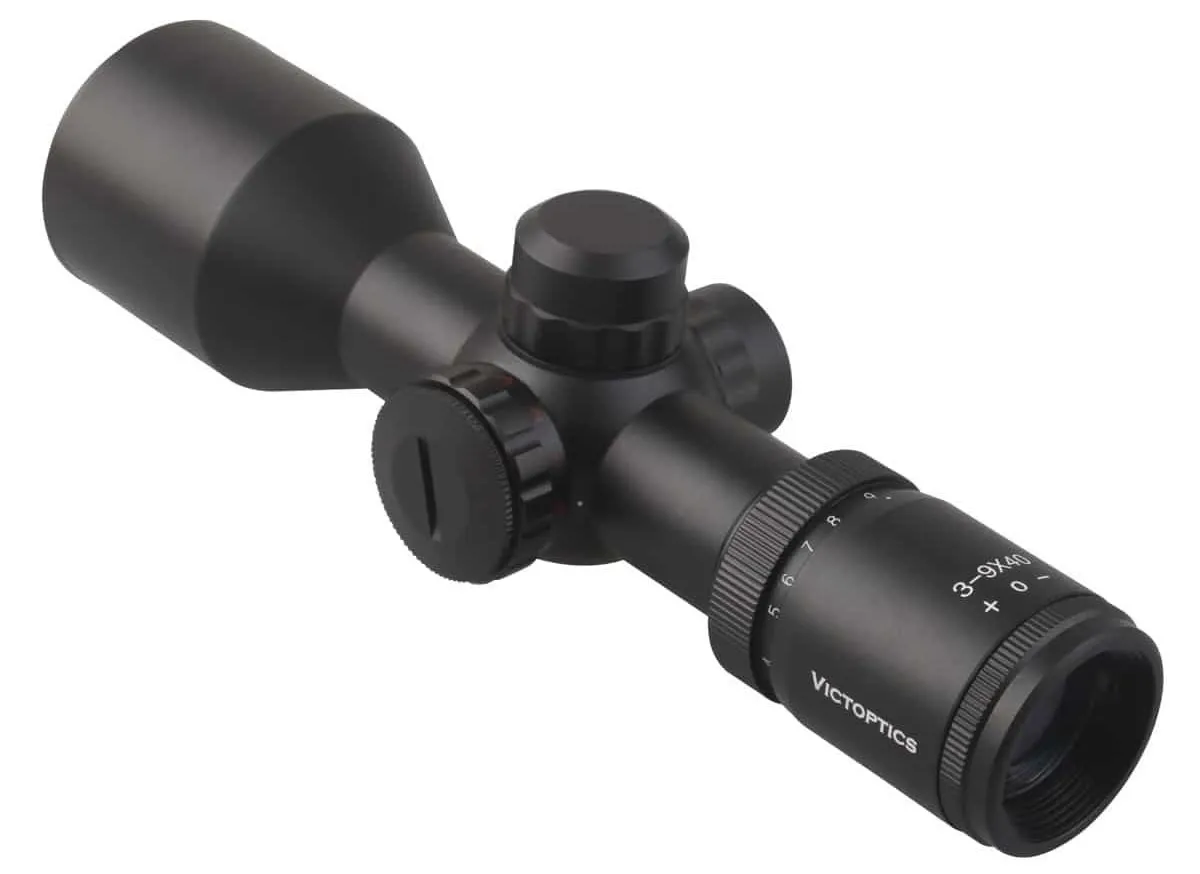

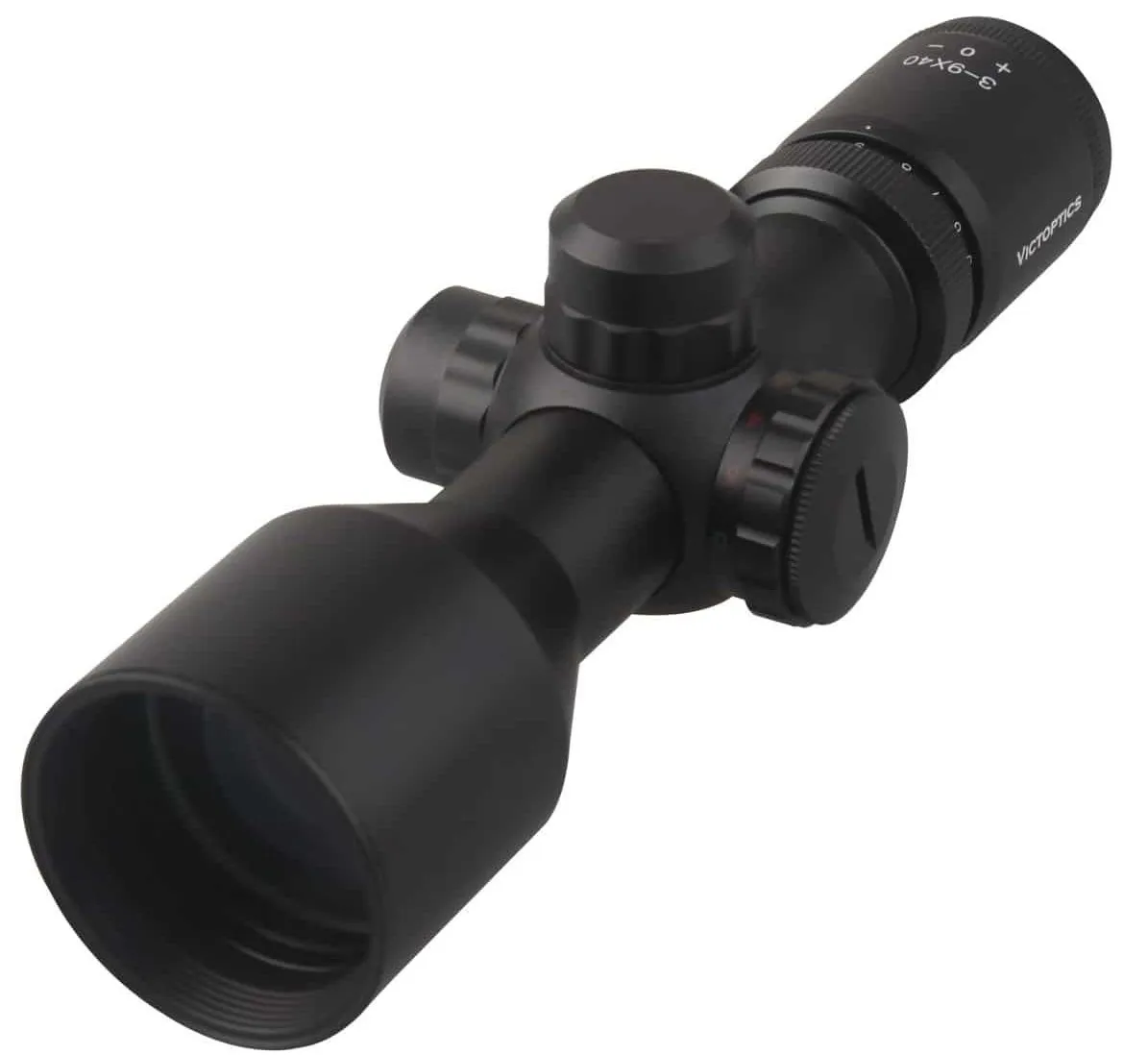

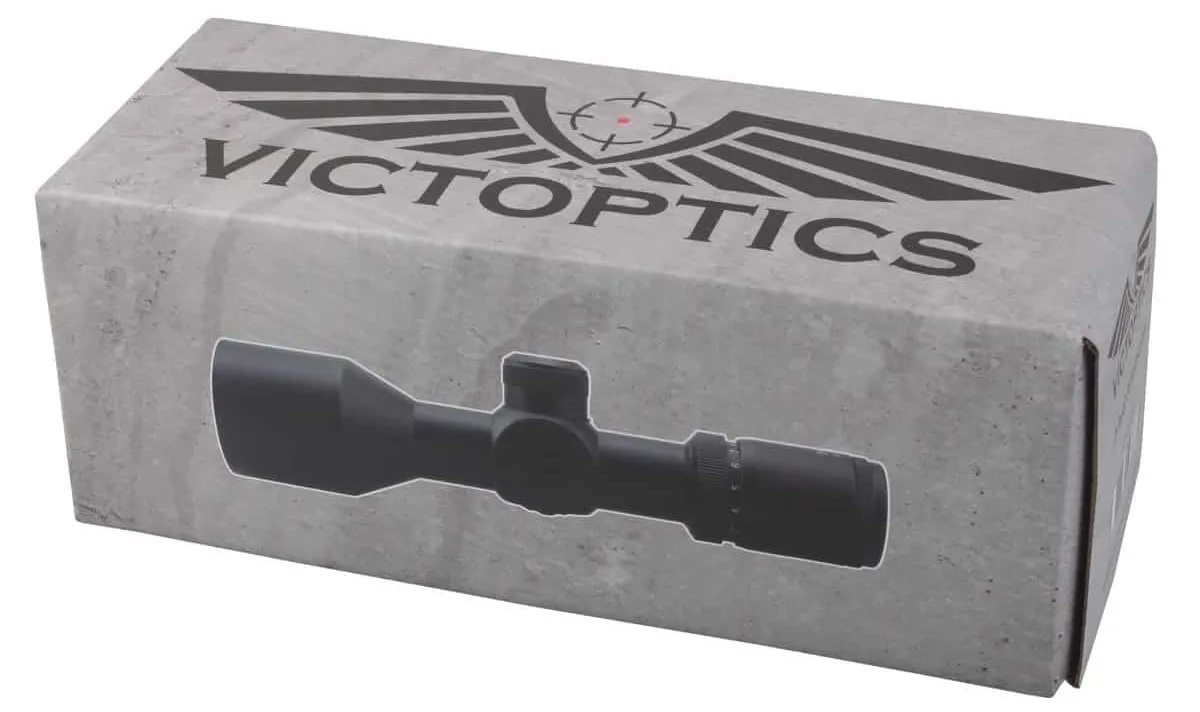

OPSL04 Victory 3-9×40 Riflescope
Pictures
Features
·  25.4mm 1“ Tube
·  Multi-Coated
·  1/4 MOA

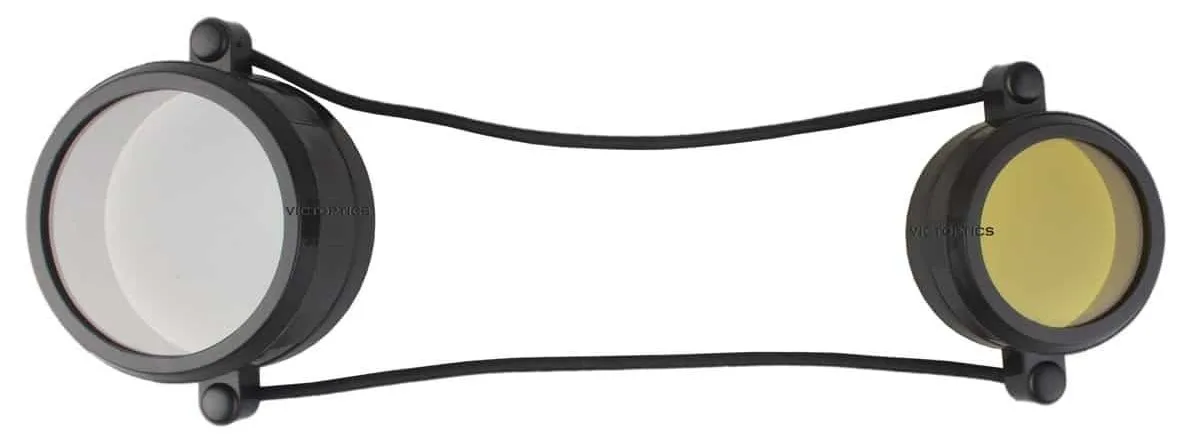

·  Red & Green Illumination, w/ Lens Caps
Specifications
| Magnification | 3-9x |
| Objective Lens Dia | 40mm |
| Ocular Lens Dia. | 28mm |
| Exit Pupil | 13.3-4.4mm |
| Optics Coating | Multi coated |
| Field of View | 11.5-34.9 feet @ 100 yards |
| Eye Relief | 75-80mm (3.0-3.1″) |
| Length | 190mm (7.5 inch) |
| Weight | 330g (11.6oz) |
| Tube Dia. | 25.4mm 1″ |
| Click Value | 1/4 MOA |
| Elevation Range | 90MOA |
| Windage Range | 90MOA |
| Parallax Setting | 100 yards |
| Reticle | Mil-dot (H) |
| Material | 6063-T6 alluminum alloy |
| Illumination | 5 red & green |
| Battery | CR2032 |
- · Distance between middle turret part to power ring: 23mm (0.9 inch
- · Recoil fit 223 and 5.56m
- · Distance between middle turret part to objective lens: 20mm (0.8 inch
- · Diopter compensation from fast-focus eyepiece (+2 to -3
- · Including items: 25.4 weaver ring, lens caps and cleaning cloth etc.
